Máy đo lực điện tử DIGITECH Just pro DTG series

Máy đo lực điện tử DIGITECH Just pro DTG series

Mã sản phẩm:DTG series

Xuất xứ:Japan

Bảo hành:12 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
Thêm vào danh sách sản phẩm quan tâm
  • Mô tả sản phẩm
  • Máy đo lực điện tử DIGITECH Just pro DTG series

    Hãng sản xuất: DIGITECH - Nhật bản


    Chức năng chính:

    - Easy-to read,auto-reverse large LCD display.

    - Connector insert and pull-out test function.

    - Auto power OFF function.

    - ±NG,OK judgments with LED display(with open collector output)

    - Memory up to 1000 data of peak and hold values.

    - Print out measuring data with connection to printer.  (Serial output,digimatic output)

    -connectable to computer through USB output cable (standard accessory)

    - Automatic peak measuring value record(Auto-memory function)

    - By setting control value of load and displacement it is possible for control the instruments.

    - Overload warning.(LED flash and sound alarm)

    - Ni-MH battery. (environment-friendry and pollution-free battery)

    - Battery remain display.

    - Display reverse function.

    - Present values of ON,OFF points. (by connection with points of switch and connectors etc.)

    - A multi AC adapter(AC100V~240V) is provided for battery charger.




    Measuring shaft M6
    Measuring accuracy ±0.2% F.S
    Measuring unit N, kgf(gf), lb
    Measuring cycle 1ms, 5ms, 16ms, 50ms
    (selectable)
    Display renewal cycle 1, 2, 5, 10, 20times /sec
    (selectable)
    Communication method USB mini B
    Memory 1000 data

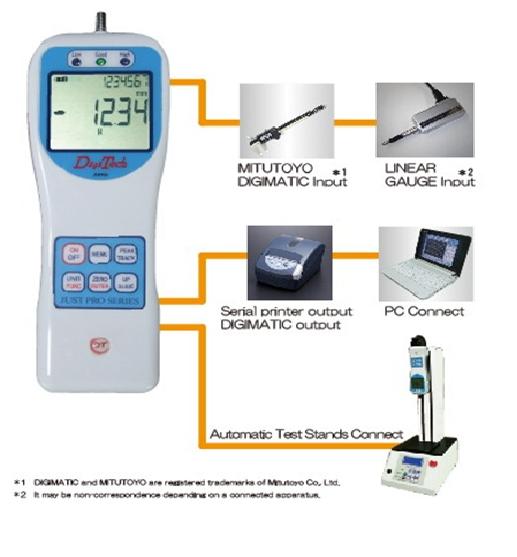

    External input Mitutoyo digimatic input, pulse input.
    (displacement meter)
    point ON,OFF load detection input.
    Printer output Serial output,
    Mitutoyo digimatic output.
    Output for test stand Load setting /displacement setting method UP,DOWN,STOP output.
    overload output
    (open collector output)
    Analog output ±2V / f.s(load value only)
    Tolerance judgment output LOW・GOOD・HIGH LED lighting and output.
    (open collector output)
    Display H45mm×W50mm LCD.
    Load: 6digit、
    Displacement: 7digit. Battery remain quantity.
    Dimension H220mm×W74mm×D37mm
    Weight approx. 500g
    Operationtemperrature 0℃~+40℃
    Power source Ni-MH battery.
    AC100V~240V multi AC adapter.
    Standard accessory 6pcs jig.
    A multi AC adapter.
    USB cable.
    Carrying case
    Operation manual.
    Test Certificate.

    DIGITECH Just pro DTG series



    Model Capacity Resolution
    DTG-1 10N,
    1kgf,
    2.205lb
    0.001N,
    0.1gf,
    0.001lb
    DTG-2 20N,
    2kgf,
    4.409lb
    0.01N,
    1gf,
    0.001lb
    DTG-5 50N,
    5kgf,
    11.02lb
    0.01N,
    1gf,
    0.01lb
    DTG-10 100N,
    10kgf,
    22.05lb
    0.01N,
    1gf,
    0.01lb
    DTG-20 200N,
    20kgf,
    44.09lb
    0.1N,
    10gf,
    0.01lb
    DTG-50 500N,
    50kgf,
    110.2lb
    0.1N,
    10gf,
    0.1lb
    DTG-100 1000N,
    100kgf,
    220.5lb
    0.1N,
    10gf,
    0.1lb
