Máy đo độ dày lớp sơn phủ SANKO SWT8000
- Mô tả sản phẩm
- Ứng dụng
- Video
- Download
- Phụ kiện
- Nhận xét

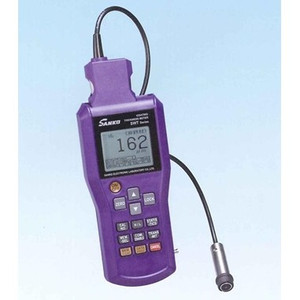

Máy đo độ dày lớp sơn phủ SANKO SWT8000.
Đo trên bề mặt từ tính hoặc không từ tính
SWT-8000Ⅱ/8100Ⅱ：Easy measuring method with simple key-layout
SWT-8200Ⅱ：Multi-functioned type with memory, statistics, data transfer to PC
l A slim-palm-sized shape, easy to grip a main unit.
l Calibration Register Function
l Massage-guide readings on the screen
l Upper/Lower limits value function
l Data transfer to PC
l A large capacity of memories of measured values (8200Ⅱ)
l Built-in statistic function (8200Ⅱ)
|
Model |
SWT-8000Ⅱ |
SWT-8100Ⅱ |
SWT-8200Ⅱ |
||
|
Ranges |
|
*depending on probe, see probe list. |
|||
|
Methods |
|
graphic LCD(data, messages) |
|
||
|
Calibration |
|
2points(zeroing, thickness standards) |
|
||
|
Calib. memory |
ferrous・non-ferrous each |
10 |
|||
|
Value memory |
Non |
Non |
10,000 |
||
|
Data transfer |
Non |
USB |
USB |
||
|
Statistics |
Non |
Non |
built-in |
||
|
Additions |
・input-lock ・auto-power-off(about 3 minutes) |
||||
|
・measurement mode switching (hold/non-interrupt) ・calibration delete |
|||||
|
|
・display resolution switching ・limits-value setting (SWT-8200Ⅱ) |
||||
|
Power |
dry cell x 2 (LR03) |
dry cell x 2 (LR-03), exclusive AC adaptor |
|||
|
Temperature |
0～40℃(non-condensing) |
||||
|
Dimensions & Weight |
72(W) x 156(H) x 30(D) mm、 200g |
||||
|
Accessories |
thickness standards, zero plate, dry cell, carrying case(hard), USB driver CD (except 8000Ⅱ), AC adaptor, USB cable |
||||
|
|
|||||
|
Option |
Probe for ferrous(Fe), Probe for non-ferrous (NFe), V-type probe adaptor(φ5, φ 5-10 φ10-15) |
||||
Probes must be ordered separately.
|
Models |
Fe－2.5/2.5L |
ＮＦｅ－0.6 |
ＮＦｅ－2.0/2.0L |
|
|
Methods |
Magnetic inducing type |
Eddy current type |
||
|
Ranges |
０～2．50ｍｍ |
０～600μｍ |
０～2．00ｍｍ |
|
|
Display resolutions |
1μｍ：0～999μｍ switching to 0．1μｍ：0～400μｍ、 0．5μｍ：400～500μｍ 0．01mm：1．00～2．50mm |
1μｍ：0～600μｍ switching to 0．1μｍ：0～400μｍ、 0．5μｍ：400～500μｍ |
1μｍ：0～999μｍ switching to 0.1μｍ：0～400μｍ、 0.5μｍ：400～500μｍ 0.01mm：1.00～2.00mm |
|
|
Accuracies （on flat face） |
0～100μｍ：±１μｍ or ±2％ the designated value 101μｍ～2．50ｍｍ：±2％ |
0～100μｍ：±1μｍ or ±2％ the designated value 101μｍ～600μｍ：±2％ |
0～100μｍ：±1μｍ or ±2％ the designated value 101μｍ～2．00ｍｍ：±2％ |
|
|
Probes |
One point contact constant pressure type, Ｖ cut φ１３×４８mm |
One point contact constant pressure type, Ｖ cut φ１１×４８mm |
One point contact constant pressure type, Ｖ cut φ１３×４７mm |
|
|
Option ： Ｖ type probe adaptor （３ kinds： forφ５ less、φ５～１０、φ１０～２０） |
||||
|
Accessories |
Standard thickness, Zero plate fro testing （Fe） |
Standard thickness, Zero plate for testing （NFe） |
||
|
Measuring objects |
Coating,, lining,, thermal spray film, plating (except electrolyte nickel plating), etc. on magnetic metal substrates like ferrous, steel, etc. |
Insulated films, etc. on non-magnetic substrates like aluminum, copper, etc. |
||
＊ Fe-10, Fe-20, NFe-8 are available for thicker objects (ferrous: max. 10mm, 20mm, non ferrous: max. 8mm)
