Ampe kìm AC/DC Fluke 355, 40A/2000A (True Rms)

Ampe kìm AC/DC Fluke 355, 40A/2000A (True Rms)

  • Model : 0
  • Bảo hành: 12 tháng
  • Tình trạng: Còn hàng
  • Hãng:
  • Giá bán: Liên hệ Giá đã bao gồm thuế VAT
  • Đặt hàng
    • Khung giờ giao hàng từ 8h00 - 17h00 hàng ngày.
    • Sản phẩm chính hãng, cung cấp CO & CQ.
    • Bảo hành miễn phí theo tiêu chuẩn nhà sản xuất.
Vui lòng liên hệ để có giá tốt nhất!
0945942992 024.66.737.866
  • Mô tả sản phẩm
  • Ứng dụng
  • Video
  • Download
  • Phụ kiện
  • Nhận xét

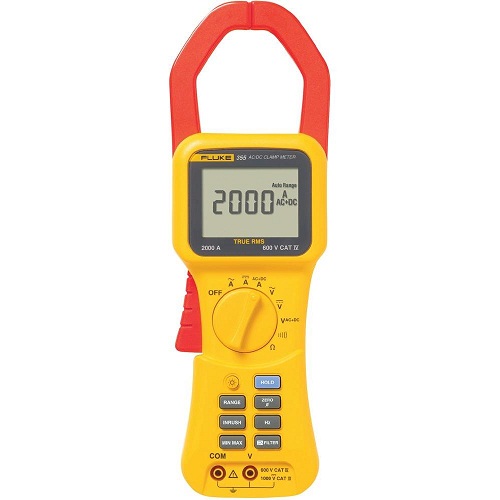

Ampe kìm AC/DC Fluke 355

Hãng sản xuất : Fluke

Model: 355

Xuất xứ : China

Thông số kỹ thuật:

Electrical specifications

Current measurement dc and ac 10 Hz to 100 Hz

Range : 40 A

 Resolution: 10 mA
Accuracy, A: 1.5 % rdg + 15 digits
Trigger Level for Inrush: 0.50 A
Trigger Level for Hz Filter OFF: 2.50 A
Trigger Level for Hz Filter ON: 0.50 A

Range : 400 A

 Resolution: 100 mA
Accuracy, A: 1.5 % rdg + 5 digits
Trigger Level for Inrush: 5.0 A
Trigger Level for Hz Filter OFF: 2.5 A
Trigger Level for Hz Filter ON: 2.5 A

Range : 2000 A; 1400 ac rms

 Resolution: 1 A
Accuracy, A: 1.5 % rdg + 5 digits
Trigger Level for Inrush: 5 A
Trigger Level for Hz Filter OFF: 8 A
Trigger Level for Hz Filter ON: 8 A

Crest Factor (50/60 Hz)

Range : 40 A

 Crest Factor* : 2 @ 33 A, 2.4 @ 27 A

Range : 400 A

 Crest Factor* : 2 @ 330 A, 2.4 @ 270 A

Range : 2000 A; 1400 ac rms

 Crest Factor* : 2 @ 1000 A, 2.4 @ 833 A

Current measurement ac 100.1 Hz to 1 kHz

Range : 40 A

 Resolution: 10 mA
Accuracy > 10 A : 3.5 % rdg + 15 digits
Trigger Level for Inrush: 0.50 A
Trigger Level for Hz Filter OFF : 2.50 A
Trigger Level for Hz Filter ON : 0.50 A

Range : 400 A

 Resolution: 100 mA
Accuracy > 10 A : 3.5 % rdg + 5 digits
Trigger Level for Inrush: 5.0 A
Trigger Level for Hz Filter OFF : 2.5 A
Trigger Level for Hz Filter ON : 2.5 A

Range : 2000 A; 1400 ac rms

 Resolution: 1 A
Accuracy > 10 A : 3.5 % rdg + 5 digits
Trigger Level for Inrush: 5 A
Trigger Level for Hz Filter OFF : 8 A
Trigger Level for Hz Filter ON : 8 A

Voltage measurement (355 only) dc and ac 10 Hz to 100 Hz
(600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)

Range : 4 V

 Resolution: 1 mV
Accuracy: 1 % rdg + 10 digits
Trigger Level for Hz Filter OFF: 0.050 V
Trigger Level for Hz Filter ON: 0.050 V

Range : 40 V

 Resolution: 10 mV
Accuracy: 1 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 0.25 V
Trigger Level for Hz Filter ON: 0.25 V

Range : 400 V

 Resolution: 100 mV
Accuracy: 1 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 6 V
Trigger Level for Hz Filter ON: 6 V

Range : 600 V ac rms

 Resolution: 1 V
Accuracy: 1 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 6 V
Trigger Level for Hz Filter ON: 6 V

Range : 1000 V dc

 Resolution: 1 V
Accuracy: 1 % rdg + 5 digits

Voltage measurement (355 only) ac 100.1 Hz to 1 kHz
(600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)

Range: 4 V

 Resolution: 1 mV
Accuracy: 3 % rdg + 10 digits
Trigger Level for Hz Filter OFF: 0.050 V
Trigger Level for Hz Filter ON: 0.050 V

Range: 40 V

 Resolution: 10 mV
Accuracy: 3 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 0.25 V
Trigger Level for Hz Filter ON: 0.25 V

Range: 400 V

 Resolution: 100 mV
Accuracy: 3 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 6 V
Trigger Level for Hz Filter ON: 6 V

Range: 600 V ac rms

 Resolution: 1 V
Accuracy: 3 % rdg + 5 digits
Trigger Level for Hz Filter OFF: 6 V
Trigger Level for Hz Filter ON: 6 V

Ohms measurement (355 only)

Range: 400 Ω

 Resolution: 0.1 Ω
Accuracy: 1.5 % + 5 digits

Range: 4 kΩ

 Resolution: 1 Ω
Accuracy: 1.5 % + 5 digits

Range: 40 kΩ

 Resolution: 10 Ω
Accuracy: 1.5 % + 5 digits

Range: 400 kΩ

 Resolution: 100 Ω
Accuracy: 1.5 % + 5 digits

Continuity beeper (355 only)



 On at ≤ 30 Ω



 Off at ≥ 100 Ω

Frequency measurement

Measurement range

 5.0 Hz to 1 kHz

Resolution

 0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)

Accuracy – 5.0 Hz to 100 Hz

 0.2 % + 2 counts

Accuracy – 100.1 Hz to 1 kHz

 0.5 % + 5 counts

Trigger level

 Refer to current and voltage tables



General specifications

Batteries



 Six 1.5 V AA NEDA 15 A or IEC LR6

Battery life (with typical usage, backlight off)



 100 hours

Test leads



 Rated to 1000 V

Weight



 .814 kg (1.8 lb)

Jaw size



 58 mm (2.28 in)

Dimensions (LxWxD)



 300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)

Safety rating



 IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III



Environmental specifications

Operating temperature



 32 °F to + 122 °F (0 °C to +50 °C)

Storage temperature



 -4 °F to 140 °F (-20 °C to +60 °C)

Operating humidity



 0 to 95 % (non-condensing)

Operating altitude



 2000 m

Storage altitude



 10,000 m

IP rating



 42 (indoor use only)

Drop test requirements



 1 m

EMI, RFI, EMC



 FCC part 15, IEC/EN 61326-1:1997 class B, IEC/EN 61326:1997 3V/m, performance criteria B, EN61325

Temperature coefficients

Current:

 0.1 % of reading per °C outside 22 °C to 24 °C

Voltage:

 0.1 % of reading per °C outside 22 °C to 24 °C
