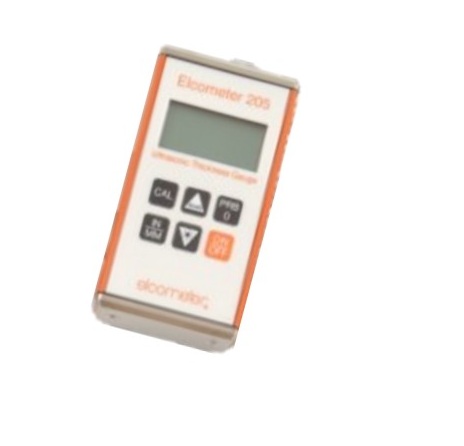

Máy đo độ dày vật liệu Elcometer C205

Máy đo độ dày vật liệu Elcometer C205

Part Number	C205----1	C206----1	C206DL----1

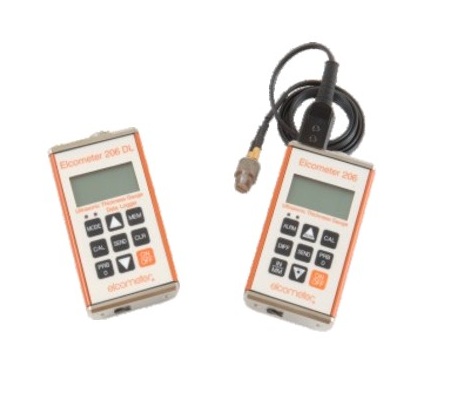

Model	Elcometer 205	Elcometer 206	Elcometer 206DL
Scan Mode	•	•	•
Differential Mode		•	•
Alarm Mode		•	•
Data Output (Immediate)		•	•
Data Logging			1000 readings
ElcoMaster™ software			•
Maximum Measurement Range	0.63 - 500mm (0.025 - 20”), dependent on transducer and material
Velocity Range	1250 - 10000m/s (0.0492 - 0.3930 in/µs)
Accuracy	±0.1mm (0.004”), dependent on material and conditions
Resolution	0.01mm (0.001”)
Units	Millimeters and inches
Operating Temperature	-30°C to 50°C (-20°F to 120°F)
Keypad Type	Sealed Membrane
Display	114mm (4½") Digit Liquid Crystal Display with backlight
Transducer	Select from transducer options
Battery Type	AA 1.5V Alkaline or 1.2V NiCad cell
Battery Life	200 hours Alkaline/120 hours NiCad
Weight	295g (10oz)
Dimensions	63 x 120 x 31mm (2.5 x 4.75 x 1.25”)
Certificate available	Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory.

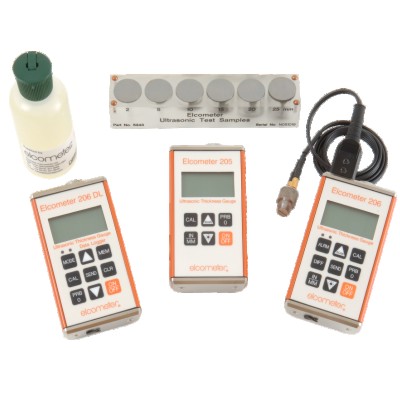

Packing List	Elcometer 205, 206 or 206DL gauge, bottle of couplant, 2 x batteries, carry case, operating instructions. Elcometer 206DL only: CD with ElcoMaster™ software and data transfer cable
