Sensor đo nhiệt độ Raytek CI

Hãng sản xuất : Raytek - USA

Covers temperature ranges from 0°C to 500°C (32°F to 932°F)

Easily replaces traditional probes and thermocouples

Accessories for cooling and air purging

Stainless steel electronics housing

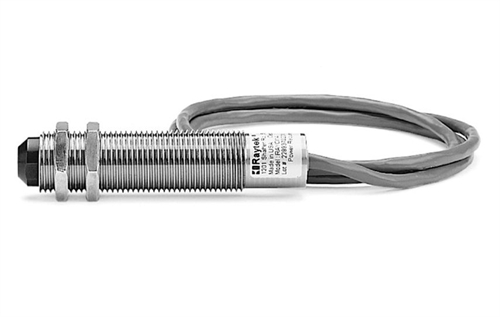

The Raytek CI noncontact infrared pyrometer is compact and easy to install. Designed for easy integration into a standard 4-wire system, the CI sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output. A 0-5 volt output is if your application is susceptible to noise or requires a longer cable run.

The CI unit's onboard electronics are protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing the sensor to function in ambient temperatures to 70°C (160°F) without cooling. With water cooling, the CI sensor can withstand ambient temperatures to 260°C (500°F).

• Type J or K, or 0-5 V output
• IP 65 (NEMA-4) stainless steel electronics housing
• 4:1 optics at 90% energy
• 350 mSec (95%) response time
• Powered by 12–24 VDC at 20 mA
• Accessories for cooling and air purging
