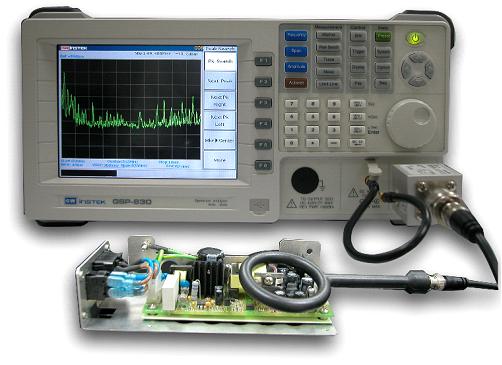

Máy phân tích phổ GWinstek GSP-830 (3GHz)

Hãng: GW-Instek. Xuất xứ: Đài Loan

FREQUENCY
Frequency Range	9kHz ~ 3GHz
Aging Rate	± 10ppm, 0~50°C, 5ppm/yr
Span Range	2kHz ~ 3GHz in 1-2-5 sequence, full span, zero span
Phase Noise	-80dBc/Hz @1GHz 20kHz offset typical
Sweep Time Range	50ms ~ 25.6s
RESOLUTION BANDWIDTH
RBW Range	3kHz, 30kHz, 300kHz, 4MHz
RBW Accuracy	15%
Video Bandwidth Range	10Hz ~ 1MHz in 1-3 steps
AMPLITUDE
Measurement Range	-103dBm ~ +20dBm: 1MHz ~ 15MHz, Ref.Level @ -30dBm -117dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm -114dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm (Span = 50kHz, RBW = 3kHz)
Overload Protection	Max. +30dBm, ±25VDC
Reference Level Range	-110dBm ~ +20dBm
Accuracy	±1dB @100MHz
Frequency Flatness	±1dB
Display Range Linearity	±1dB over 70dB
DYNAMIC RANGE
Average Noise Floor	<-135±1dBm/Hz: 1MHz ~ 15MHz, Ref.Level @ -30dBm <-149dBm/Hz, typical -152dBm/Hz: 15MHz ~ 1GHz, Ref.Level ≧-110dBm <-146dBm/Hz, typical -149dBm/Hz: 1GHz ~ 3GHz, Ref.Level ≧-110dBm
Third Inter-Modulation	<-70dBc RF Input @-40dBm, Ref.Level @-30dBm
Harmonic Distortion	<-60dBc RF Input <-40dBm Typical, Ref.Level @-30dBm
Non-Harmonic Spurious	<-93dBm, 1MHz ~ 15MHz, Ref.Level @-30dBm <-107dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm <-104dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm (Span = 50kHz, RBW = 3kHz)
GENERAL
Display	640 x 480 high resolution TFT color LCD
Split Windows	Active Window: Upper, Lower or Alternate (two simultaneously sweeping windows)
Markers	10 Markers for peaks: 5 normal-delta marker pairs Functions: Delta, To Peak, To Minimum, Peak Track, Peak Table, Peak Sort
Trace Detection	3 traces with Peak, Maximum hold, Freeze, Average, Trace math
Power Measurement	ACPR, OCBW, Channel Power, N dB and Phase Jitter
Autoset Function	Auto tuning the measurement result for observation
Trigger	Conditions: Video, External (Positive-going, +5V TTL external signal) Mode: Normal, Single, Continuous
Sequence	Automated test by user-defined macros without any remote controller, 10 Sequential macro set and 10 macros per each set, Variable delays and wait-to-go facilitate automated measurement, Do-sequence links and nests different sequence sets.
CONNECTORS
RF Input	N female, 50Ω nominal RF input VSWR: <2:1, @0dBm Reference Level
External Reference	Type: BNC female
Clock Input	1M, 1.544M, 2.048M, 5M, 10M, 10.24M, 13M, 15.36M, 15.4M, 19.2MHz
Reference Clock Output	Type: BNC female, 10MHz
DC Input (DC Power Operation)	Jack : 5.5mm, 12V
DC Output (for GAP-801)	Type: SMB Male, outputs +9V/100mA Max.
INTERFACE
RS-232C	Sub-D 9 pins female
USB Connector	USB Host/Device full speed supported
VGA Output	Front panel: Type A receptacle for USB flash devices
Option: GPIB Interface	Fully programmable with IEEE 488.2 compliance
POWER SOURCE
	AC 100 ~ 240V, 50/60Hz
ACCESSORIES
	User Manual x 1 Power Cord x 1 USB Cable (Type A plug to Type mini-B plug) x1
DIMENSIONS & WEIGHT
	330(W) x 170(H) x 340(D) mm Approx. 6kg
