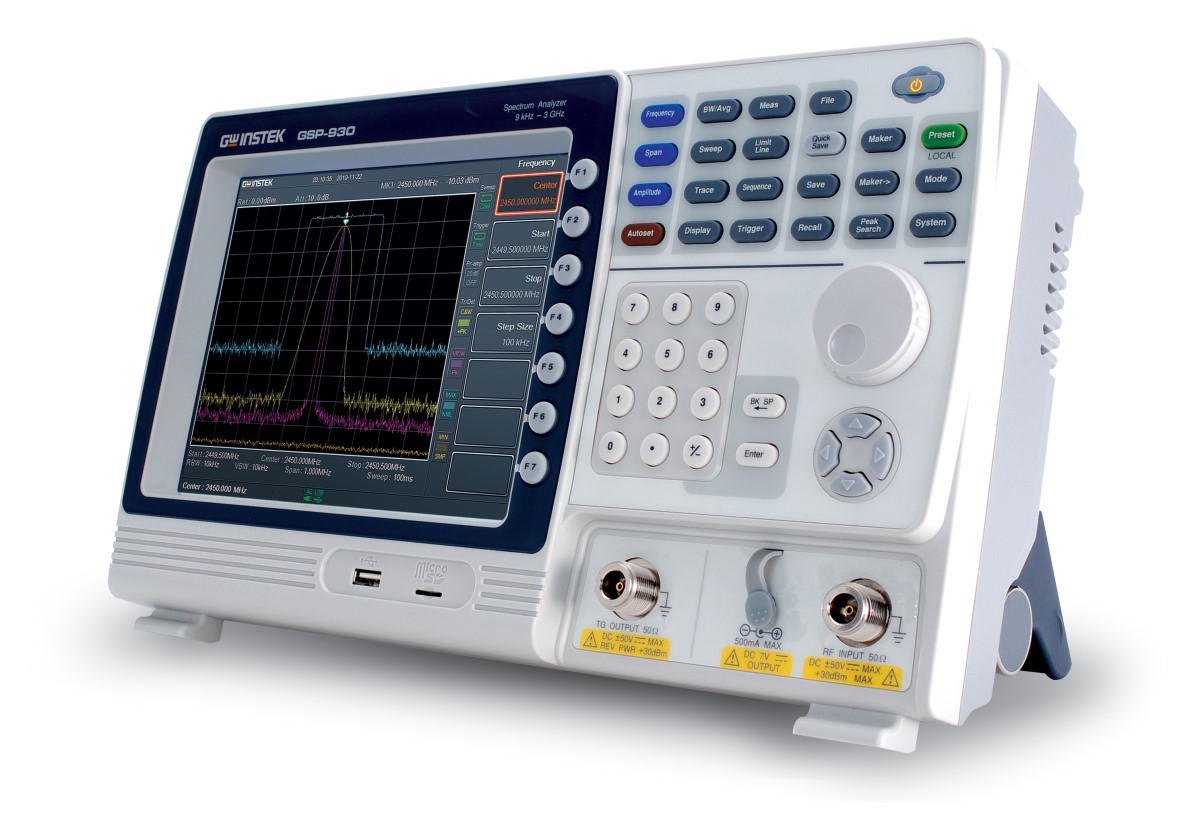

Máy phân tích phổ GW-instek GSP-930

Hãng sx: GW-instek.

Xuất xứ: Đài Loan

Frequency
Frequency
	Range	9 kHz to 3.0 GHz
	Resolution	1 Hz
Frequency Reference
	Accuracy	±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability
	Aging Rage	±2 ppm max.	1 year after last adjustment
	Frequency Stability over Temperature	±0.025 ppm	0 to 50 °C
	Supply Voltage Stability	±0.02 ppm
Frequency Readout Accuracy
	Start, Stop, Center, Marker	±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution¹)
	Sweep points	601	Span > 0
	Sweep points	6 to 601	Span = 0
Marker Frequency Counter
	Resolution	1 Hz, 10 Hz, 100 Hz, 1 kHz
	Accuracy	±(marker frequency indication X frequency reference accuracy + counter resolution)	RBW/Span >=0.02 ; Mkr level to DNL>30 dB
Frequency Span
	Range	0 Hz (zero span), 100 Hz to 3 GHz
	Resolution	1 Hz
	Accuracy	± frequency resolution¹
Phase Noise
	Offset from Carrier		Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz;Average ≥ 40
	10 kHz	<-88 dBc/Hz	Typical²
	100 kHz	<-95 dBc/Hz	Typical
	1 MHz	<-113 dBc/Hz	Typical
Resolution Bandwidth (RBW) Filter
	Filter Bandwidth	10 Hz to 3 kHz in 1-3-10 sequence	-3dB bandwidth subtotal: 6 filters
		10 kHz to 1 MHz, increment in 10% step	-3dB bandwidth; min. RBW = 10 kHz @ zero span Subtotal: 49 filters
		200 Hz, 9 kHz, 120 kHz	-6dB bandwidth
	Accuracy	± 8%, RBW ≥ 750 kHz	Nominal³
	Accuracy	± 5%, RBW < 750 kHz	Nominal
	Shape Factor	< 4.5:1	Normal Bandwidth ratio: -60dB:-3dB
Video Bandwidth (VBW) Filter
	Filter Bandwidth	1 Hz to 1 MHz in 1-3-10 sequence	-3dB bandwidth
[1] Frequency Resolution = Span/(Sweep points - 1) [2] Typical specifications in this datasheet mean that the performance can be exhibited in 80% of the units with a 95% confidence level over the temperature range 20 to 30 °C. They are not covered by the product warranty. [3] Nominal values indicate expected performance. They are not covered by the product warranty.

General
	Internal Data storage	16 MB nominal
	Power Consumption	<65 W
	Warm-up Time	< 30 minutes
	Temperature Range	+5 °C to +45 °C	Operating
	Temperature Range	-20 °C to + 70 °C	Storage
	Weight	4.5 kg (9.9 lb)	Inc. all options (Basic+TG+GPIB+Battery)
	Dimensions	210 x 350 x 100 (mm)	Approximately
		8.3 x 13.8 x 3.9 (in)
