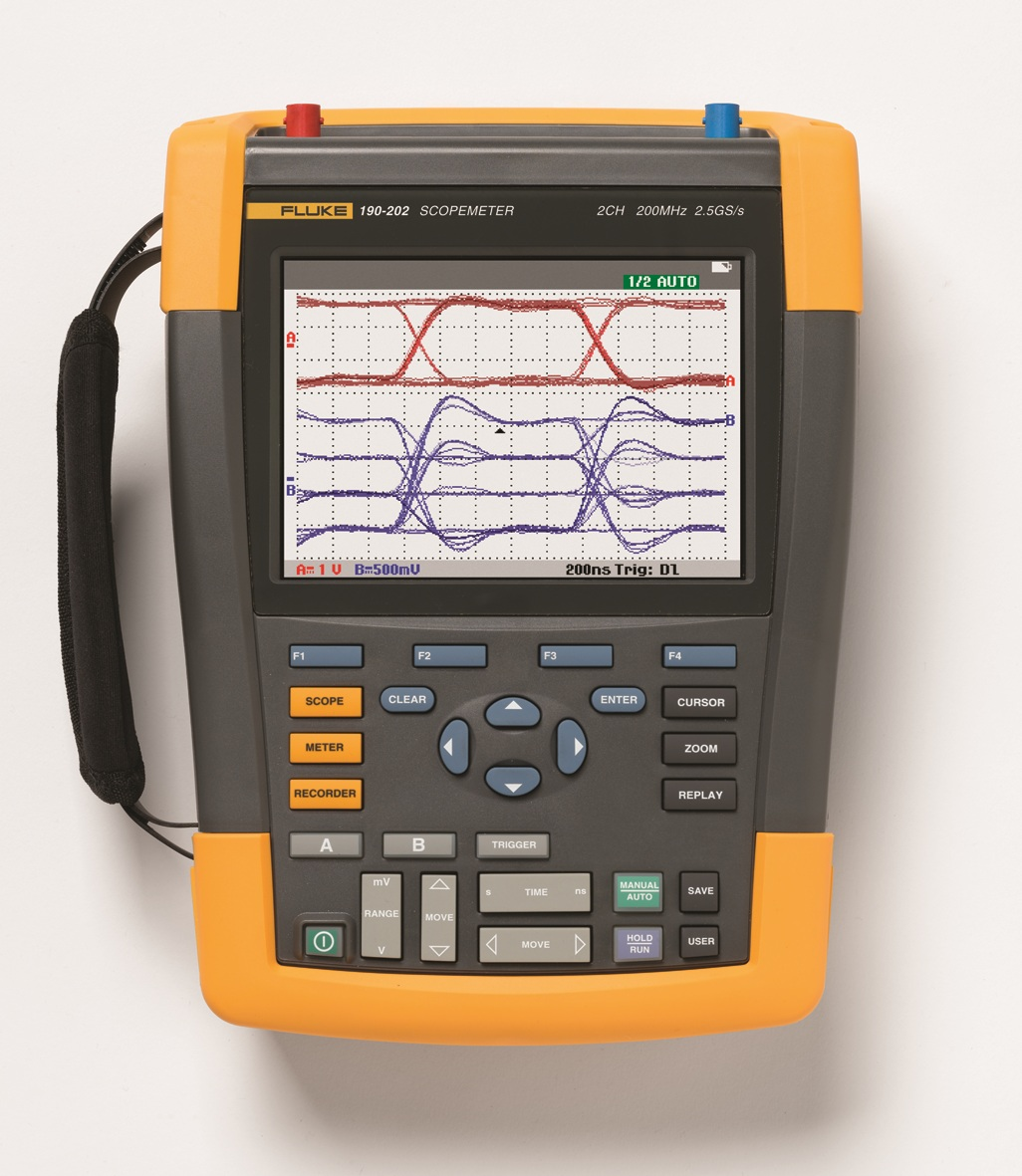

Máy hiện sóng Fluke 190-202

Hãng: Fluke

Model: 190-202

Xuất xứ: Châu Âu

Thông số kĩ thuật:

Bandwidth	200 MHz
Number of Channels	200 MHz: 2 channels
Real-time sample rate	2.5 GS / s
Inputs	4 scope or 2 scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range	2 ns - 2 min/div
Input sensitivity	2 mV-100 V/div
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source	Any scope input channel, or external via DMM input on 190-XX2, 2 channel models
Glitch capture	8 ns
Scope measurements	Cursor: 7
Scope measurements	Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts
Maximum record length	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare	Waveform reference with automatic Pass/Fail testing
DMM Specification (2-channel models)	Meter inputs (also used as External Trigger Input for the Oscilloscope Mode)
Maximum Resolution:	5000 counts
Measurements:	Vdc, Vac rms, Vac+dc rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature ºC or ºF (using optional converter)
Memory	190-XX2, 2 Channel
	Screen + Setup: 30
	Recording: 10
Display	153 mm full color LCD with fast update rate
