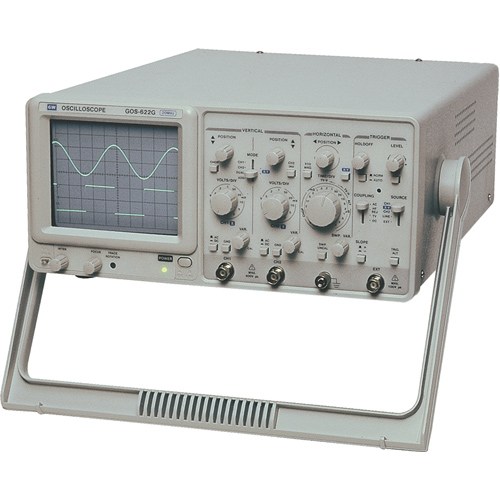

Máy hiện sóng số GWinstek GOS-652G

Máy hiện sóng tương tự GWinstek GOS-652G

Hãng SX: GW-Instek. Xuất xứ: Đài Loan

CRT
Type	6-inch rectangular type with internal graticule 0%, 10%, 90% and 100% markers. 8 x 10 div (1div=1cm)
Accelerating Potential	12kV
Illumination	Continuously adjustable
Z-axis Input	Input Impedance: Approx. 5kΩ Sensitivity:Above 3Vp-p Bandwidth:DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity	5mV ~ 5V/div±3%,1mV ~ 2mV/div±5%
Bandwidth	DC ~ 50MHz DC ~ 15MHz at 1 ~ 2mV/div
Rise Time	7ns (23.3ns for 1 ~ 2mV/div)
Signal Delay	leading edge can be monitored (GOS-653G only)
Input Impedance	Approx. 1MΩ
Input Coupling	AC, DC, GND
Vertical Mode	CH1, CH2, DUAL, ADD, CH2 INV (Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
A(main) Sweep Time	0.1μs ~ 0.5s/div ±3% 100ns ~ 50ms/div ±5% (x 10 MAG) 10ns ~ 50ns ±8% (x 10 MAG)
B(delay) Sweep Time	0.1μs ~ 0.5ms/div ±3% 100ns ~ 50μs/div ±5% (x 10 MAG) 10ns ~ 50ns/div ±8% (x 10 MAG)
Delay Time	1μs ~ 5ms/div ±5% (GOS-653G only)
Delay Time Jitter	Better than 1:10000 (GOS-653G only)
TRIGGER
Trigger Mode	AUTO, NORM, SINGLE
Trigger Source	CH1, CH2, ALT, LINE, EXT
Trigger Coupling	AC, DC, HF REJ, TV
Trigger Slope	"+" or "-"
X-Y OPERATION
Sensitivity	5mV ~ 5V/div±4%
X-axis Bandwidth	DC ~ 2MHz
Phase Error	3° or less from DC ~ 100kHz
OUTPUT SIGNAL
Ch1 Signal Output	Voltage: approx. 50mV/div into 50Ω
Calibrator Output	1kHz Square wave, 2Vpp±2%
POWER SOURCE
	AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
	310(W) x 150(H) x 455(D) mm; Approx. 8.2kg
