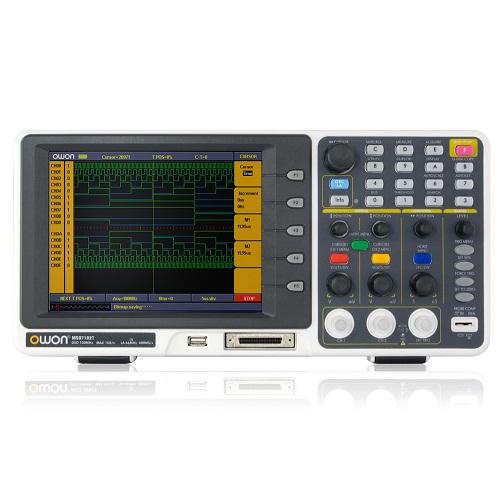

Máy hiện sóng số Owon MSO7102TD

Hãng SX: Rigol.

Model: MSO7102TD

Xuất xứ: China

Thông số kỹ thuật:

Oscilloscope Specifications:

• Bandwidth: 100MHz
• Sample rate (Real time):1GSa/s (500MSa/s for dual channels)
• Horizontal Scale (S/div): 2ns/div ~ 100s/div  step by 1~2~5
• Rise time (at input, typical): ≤3.5ns
• Channels: Dual
• Display: 8.0 inch color LCD, TFT screen, 640x480 pixels
• Dimensions: 370mm(L)x180mm(H)x120mm(W)
• Weight: 2.2kg

Logic Analyzer Specifications:

• Bandwidth: 200MHz
• Sample rate (real-time): 20S/s - 1GS/S
• Threshold Voltage: ±6V(4 settings)
• Input Signal Range: ±30v
• Channels: 16
• Record length: 4M/channel
• Input impedance: 660kΩ:±5% // 15±5pF
