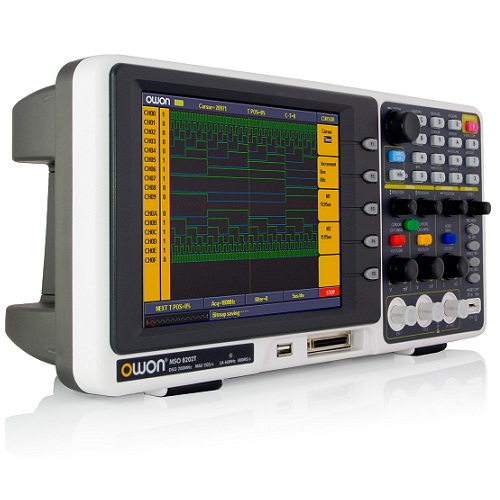

Máy hiện sóng số Owon MSO8202T

Hãng SX: Rigol.

Model: MSO8202T

Xuất xứ: China

Thông số kỹ thuật:

Oscilloscope Specifications:

• Bandwidth: 200MHz
• Sample rate (Real time):2GSa/s (1GSa/s for dual channels)
• Horizontal Scale (S/div): 1ns/div ~ 100s/div  step by 1~2~5
• Rise time (at input, typical): ≤1.7ns
• Channels: Dual
• Display: 8.0 inch color LCD, TFT screen, 640x480 pixels
• Dimensions: 370mm(L)x180mm(H)x120mm(W)
• Weight: 2.2kg

Logic Analyzer Specifications:

• Bandwidth: 200MHz
• Sample rate (real-time): 20S - 1GS/S
• Threshold voltage: ±6V
• Input signal range: ±30V
• Channels: 16
• Record length: 4M/channel
• Input impedance: 660KΩ:±5% // 15±5pF
